Description

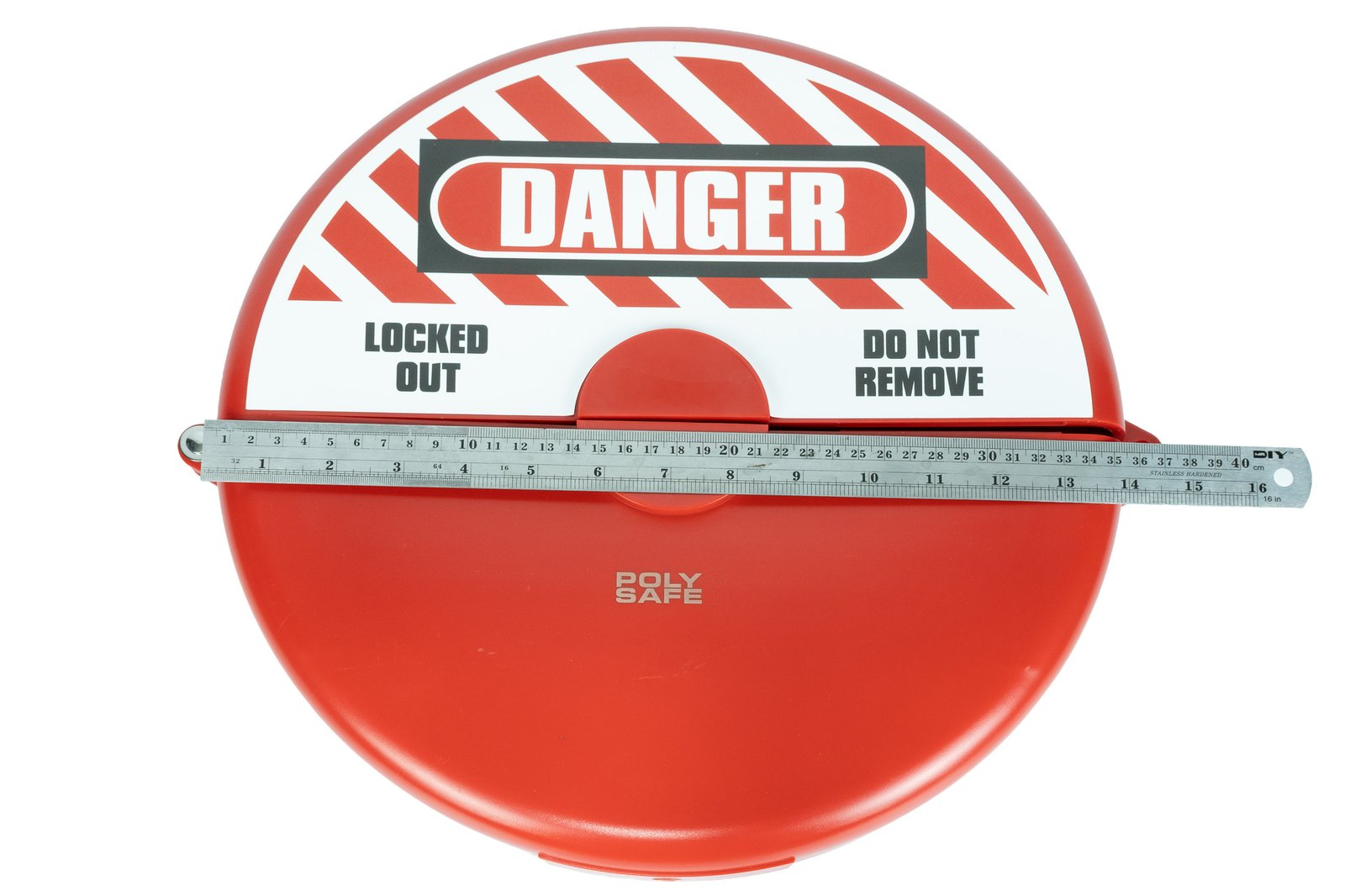

Large-size gate valve lockout designed to secure oversized valve handles ranging from 254 mm to 330 mm in diameter. The device fully encloses the valve handle and allows multiple padlocks to be applied for group lockout procedures. Suitable for industrial facilities with large piping systems.
Features
• Large-size gate valve lockout designed for oversized valve handwheels in industrial piping systems
• Strong ABS construction provides reliable durability and lockout performance
• Fully encloses the valve handwheel to prevent accidental or unauthorized operation
• Compatible with safety padlocks having shackle diameters up to 7 mm
• Suitable for large industrial gate valves used in process, plant, and utility systems
• High-visibility red body helps clearly identify locked-out valves
Specifications
• Body Material: ABS
• Valve Type: Gate Valve
• Compatible Handwheel Diameter: 254 mm – 330 mm
• Equivalent Size Range: 10″ – 13″
• Hole Diameter: 105 mm
• Inner Height: 60 mm
• Compatible Padlock Shackle Diameter: Up to 7 mm
• Color: Red
Material
• ABS
