Description

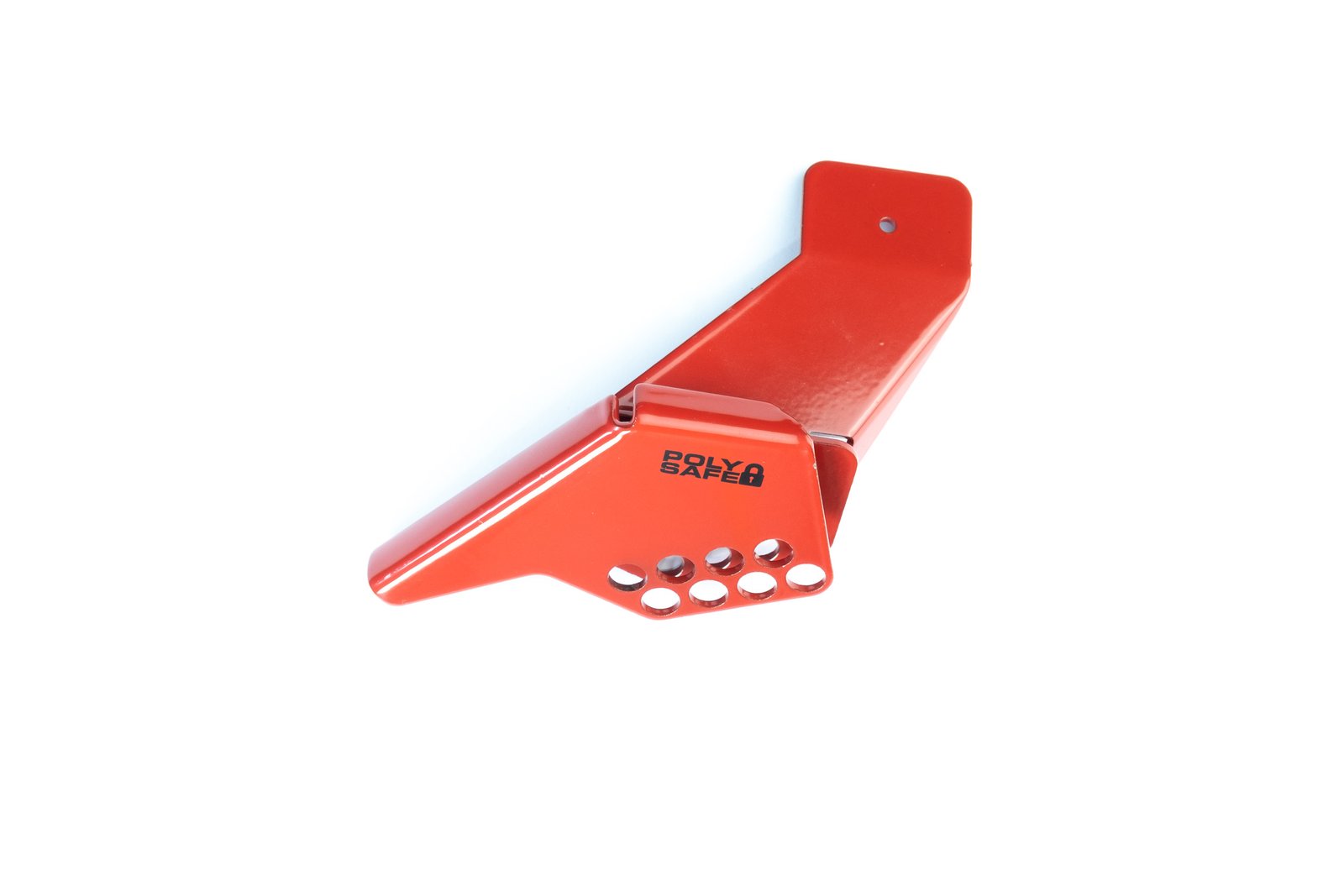

Steel wedge-style ball valve lockout designed to prevent operation of ball valves during maintenance and servicing. The durable steel construction provides strong physical security while the wedge design blocks the valve handle from turning. Suitable for valve sizes DN8 to DN50 in industrial piping systems.
Features
• Wedge-style ball valve lockout designed to secure quarter-turn ball valves in the closed position during maintenance and servicing
• Durable steel plate construction provides strong mechanical protection and reliable valve isolation
• High-temperature coated surface improves corrosion resistance and durability in industrial environments
• Compact design suitable for small to medium ball valves in piping systems
• Multiple padlock holes allow secure lockout and support group lockout procedures
Specifications
• Body Material: Steel Plate
• Surface Finish: High-Temperature Protective Coating
• Valve Type: Quarter-Turn Ball Valve
• Applicable Valve Size: DN8 – DN50
• Equivalent Pipe Size: 0.25″ – 1″ (6.35 – 25.4 mm)
• Padlock Hole Diameter: 10 mm
• Approx. Body Length: 83 mm
• Approx. Body Width: 85 mm
Material
• Steel Plate with Protective Coating
