Description

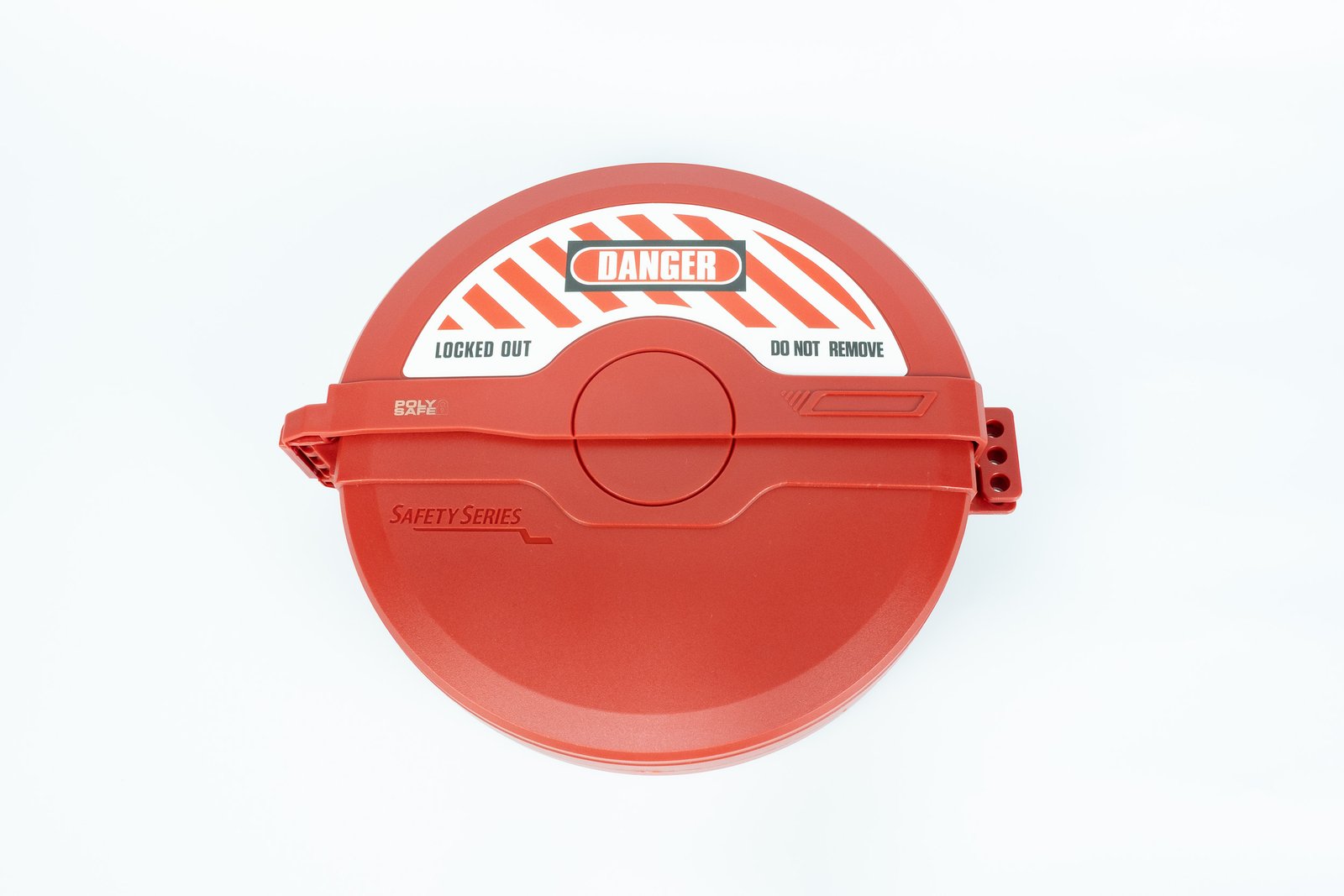

Gate valve lockout designed for valve handles with diameters between 165 mm and 254 mm. The device prevents rotation of the valve handle and allows lockout padlocks to be applied to ensure safe maintenance procedures. Suitable for use in industrial process and utility systems.
Features
• Standard gate valve lockout designed to fully enclose valve handwheels and prevent unauthorized operation during maintenance
• Manufactured from high-strength glass-filled engineering nylon (PA66 GF / Zytel type) for excellent durability and impact resistance
• Two-piece semicircular design allows compact storage and easier carrying when not in use
• Accommodates 2 to 4 safety padlocks for secure isolation and group lockout applications
• Suitable for large gate valve handwheels in industrial process, utility, and maintenance systems
• High-visibility body helps clearly identify locked-out valves and supports safer LOTO procedures
Specifications
• Body Material: Glass-Filled PA66 / DuPont Engineering Plastic
• Valve Type: Gate Valve
• Compatible Handwheel Diameter: 165 mm – 254 mm
• Equivalent Size Range: 6.5″ – 10″
• Hole Diameter: 90 mm
• Inner Height: 60 mm
• Padlock Capacity: 2 – 4 padlocks
• Compatible Padlock Shackle Diameter: Up to 7 mm
• Design Type: Two-Piece Semicircular
• Color: Red
Material
• Glass-Filled PA66 (Zytel Type) Engineering Plastic
