Description

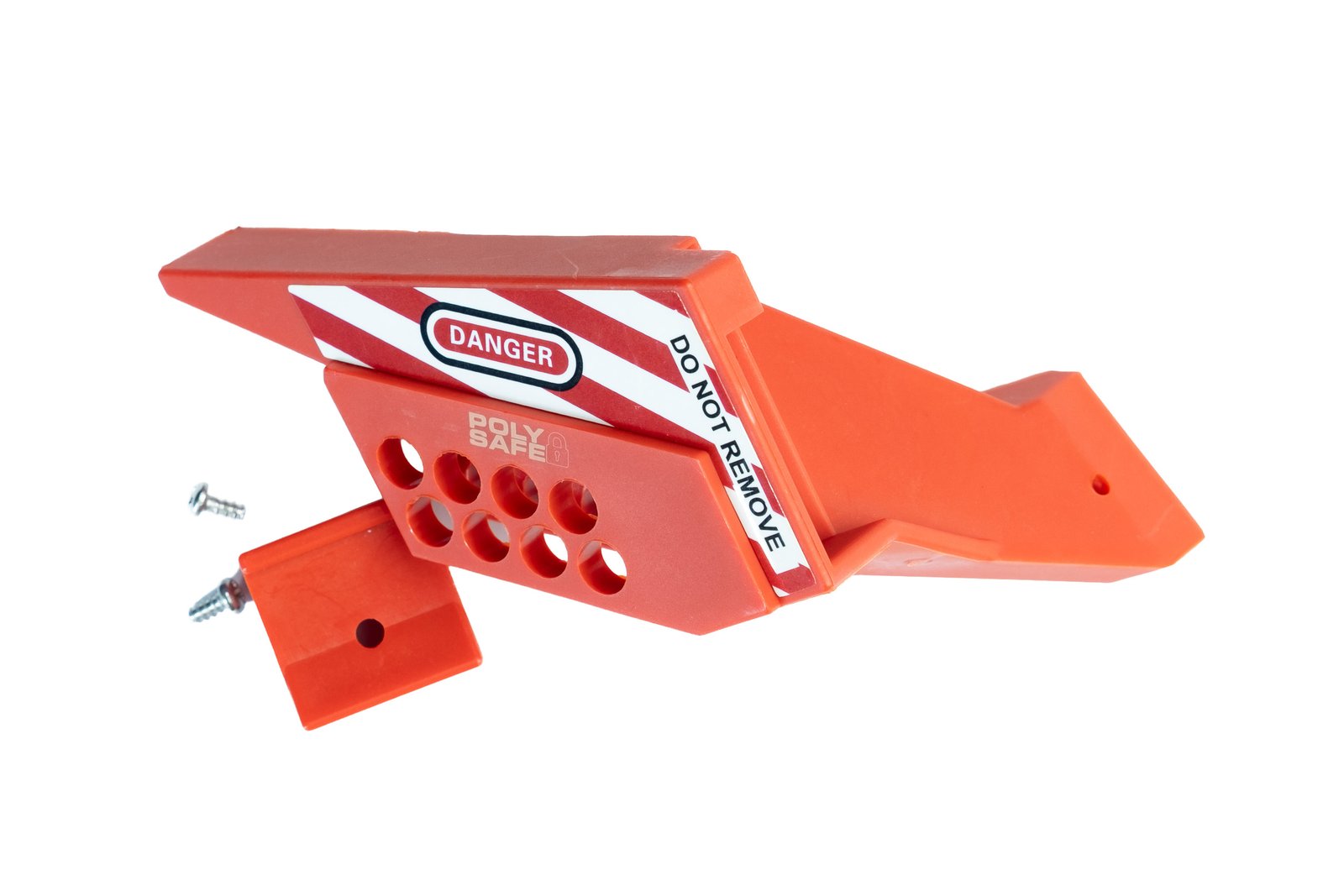

Plastic wedge-style ball valve lockout designed to prevent operation of small to medium ball valves during maintenance activities. The wedge structure blocks the valve handle to prevent rotation while a safety padlock secures the device in place. Suitable for valve sizes DN8 to DN50.
Features
• Wedge-style ball valve lockout designed to secure quarter-turn ball valves in the closed position during maintenance and servicing
• Durable polypropylene (PP) construction provides good impact resistance and corrosion resistance for industrial use
• Lightweight design offers a practical alternative to steel wedge lockouts for smaller valve applications
• Wedge structure blocks valve handle movement to help prevent accidental operation
• Multiple padlock holes allow secure isolation and support group lockout procedures
• High-visibility red body improves lockout identification in piping systems
Specifications
• Body Material: Polypropylene (PP)
• Valve Type: Quarter-Turn Ball Valve
• Applicable Valve Size: DN8 – DN50
• Equivalent Pipe Size: 0.25″ – 1″ (6.35 – 25.4 mm)
• Approx. Body Length: 80 mm
• Approx. Body Width: 90 mm
• Padlock Hole Diameter: 7 mm
Material
• Polypropylene (PP)
